multi layer pcb fabrication process 10 layer pcb with blue glue multilayer pcb boards

Shenzhen Hengxunda Circuit Technology Co.,LTD
Contact Now

multi layer pcb fabrication process 10 layer pcb with blue glue multilayer pcb boards

MOQ : 1pcs

Price : USD 0.1-5/pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs per month

Packaging Details : 25kgs/carton, vacuumed packing

Brand Name : hengsheng

Model Number : HSG5046

Certification : UL,ISO9001,TS16949

Place of Origin : china

Delivery Time : 7-10working days

Board Thickness : 0.2-4.0mm

Copper Thickness : 1/2oz-5oz

Impedance Control : ±10%

Layer Count : 2-20

Material : FR4/High TG/Aluminum/Rogers/Teflon

Max. Board Size : 580*1200mm

Min. Board Thickness : 0.2mm

Min. Hole Size : 0.2mm

Min. Line Width/Space : 3/3mil

Min. Silkscreen Line Width : 0.15mm

Min. Solder Mask Dam : 0.1mm

Surface Finish : OSP/HASL/ENIG/Immersion Gold/Silver

Contact Now

Process Capability And Checking Parameters(Hard Board)
NO ITEM Technical Capabilities
1 Layers 1-38L
2 Max.Board Size 1200*610mm
48"*24"
3 Finished Board Thickness 0.2mm--10.0mm
0.008"--0.4"
4 Finished Copper Thickness 17um-420um
0.5OZ--12OZ
5 Min.Trace Width/Space 0.075mm/0.065mm
0.003"/0.0026"
6 Min.Hole Size 0.15mm
0.006"
7 Hole Dim. Tolerance(PTH) ±0.05mm
±0.002"
8 Hole Dim.Tolerance(NPTH) ±0.05mm
±0.002"
9 Drill Location Tolerance ±0.05mm
±0.002"
10 V-Cut Degrees 20-90 ºC
20DEG-90DEG
11 Min.V-Cut PCB Thickness 0.4mm
0.016"
12 N/C Routing Tolerance ±0.1mm
±0.004"
13 Min.Blind/Buried Via 0.15mm
0.06"
14 Plug Hole Size 0.2mm--0.6mm
0.008"--0.024"
15 Min.BGA PAD 0.2mm
0.008"
16 Materials FR4(TG130-TG170),Aluminium,Halogen-free,Rogers,ShengYi,KB
17 Surface Finish HASL-LF,ENIG,ImAg,ImSn,OSP,Gold platting, ENIG+OSP,HAL+G/F
18 Warp & Twist ≤0.75%
19 Electrical Testing 50--300V
20 Solderability Testing 245±5ºC,3sec Wetting area least95%
21 Thermal Cycling Testing 288±5ºC,10sec,3cycles
22 Ionic Contamination Testing Pb,Hg,Cd,Cr(VI),PBB,PBDE six items are less than 1000ppm
23 Soldmask Adhesion Testing 260ºC+/-5, 10S,3times

FAQ
Q1. What information do i need for PCB quotation?
A: Gerber file and technical requirements. Such as the material of the PCB, thickness, copper surface, the colour of mask and silkscreen, etc.)
Q2. What file formats are accepted for PCB production?
A: Gerber file: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole
process.. All documents from customers are never shared with any third parties.

Q4. What is the MOQ?
A: Our company does not have the minimum order quantity. We are able to flexibly handle small batches and mass production.
Q5. How much for the shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.


Buy cheap multi layer pcb fabrication process 10 layer pcb with blue glue multilayer pcb boards product

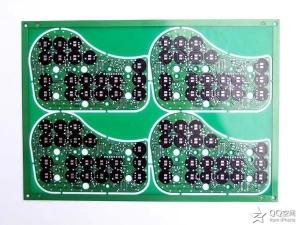

multi layer pcb fabrication process 10 layer pcb with blue glue multilayer pcb boards Images
